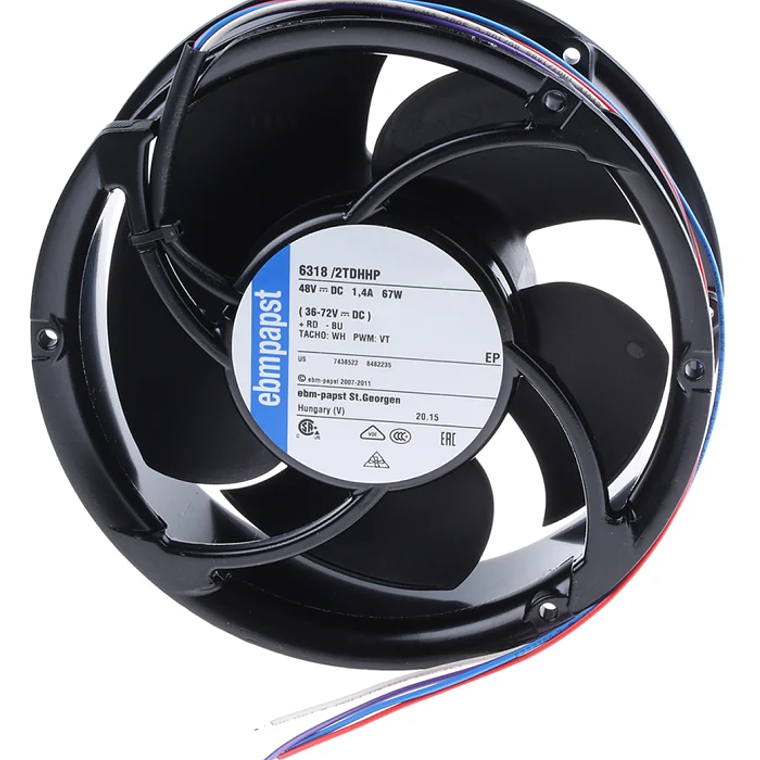

Descripción: 6318 /2 Dc Axial Compact Fan Tdhhp
Marca: EBM
Número De Parte: TDHHP
Compatibilidades: Datos Del Producto
Ebm-Papst Compact Dc Axial Fans
The 6300Td Series Provides A Compact Solution Allied With High Performance.
Permits Closed-Loop Speed Control And Monitoring Which Are Becoming Increasingly Important In Applications.
This Fan Series Is Particularly Suitable For The Cooling Of High-Performance Electronic Components, Such As Those In Servers, Tca Systems, Telecommunication Devices, Inverter Drives And Many Other Industrial Applications
Números de Parte Alternativos: General Description 3-Phase Fan Drive With Very Smooth Operation And High Efficiency Housing With Grounding Lug For M4 X 8 Screw (Torx) Power Consumption When Wide Open; These Values May Be Considerably Higher At The Operating Point.
Weight 0.910 Kg
Dimensions Ø 172 X 51 Mm
Impeller Material Glass-Fiber Reinforced Pa Plastic
Housing Material Die-Cast Aluminum
Airflow Direction Exhaust Over Struts
Direction Of Rotation Counterclockwise, Viewed Toward Rotor
Bearing Ball Bearing
Service Life L10 At 40 °C 62500 H
Service Life L10 At Maximum Temperature 25000 H
Cable With Leads Awg 18, 20 Or Awg 22, Tr 64, Speed Signal And Control Input Awg 22
Motor Protection Protection Against Reverse Polarity And Blocked Rotor.
